The Cottage ADU Plan is a 1-bedroom, 1-bathroom, 639 square foot home designed with flexible living in mind. With a classic cottage aesthetic and a layout that can double as an office as well as a guest house, this plan solves the real constraints of urban infill development.
The main level opens to an open-concept kitchen, dining, and living area oriented toward the back yard, maintaining natural light and visual depth on a compact footprint. oversized sliding door near the living area creates an expansive interior feeling. The primary suite occupies the front corner with a cozy walk-in setup, separated from the high-traffic zones for privacy and quiet.
This plan is optimized for 32-foot-wide lots with standard setbacks. It provides a timeless cottage charm ideal for historic neighborhoods or accessory dwelling spaces.
What's Included in This Plan Set
-

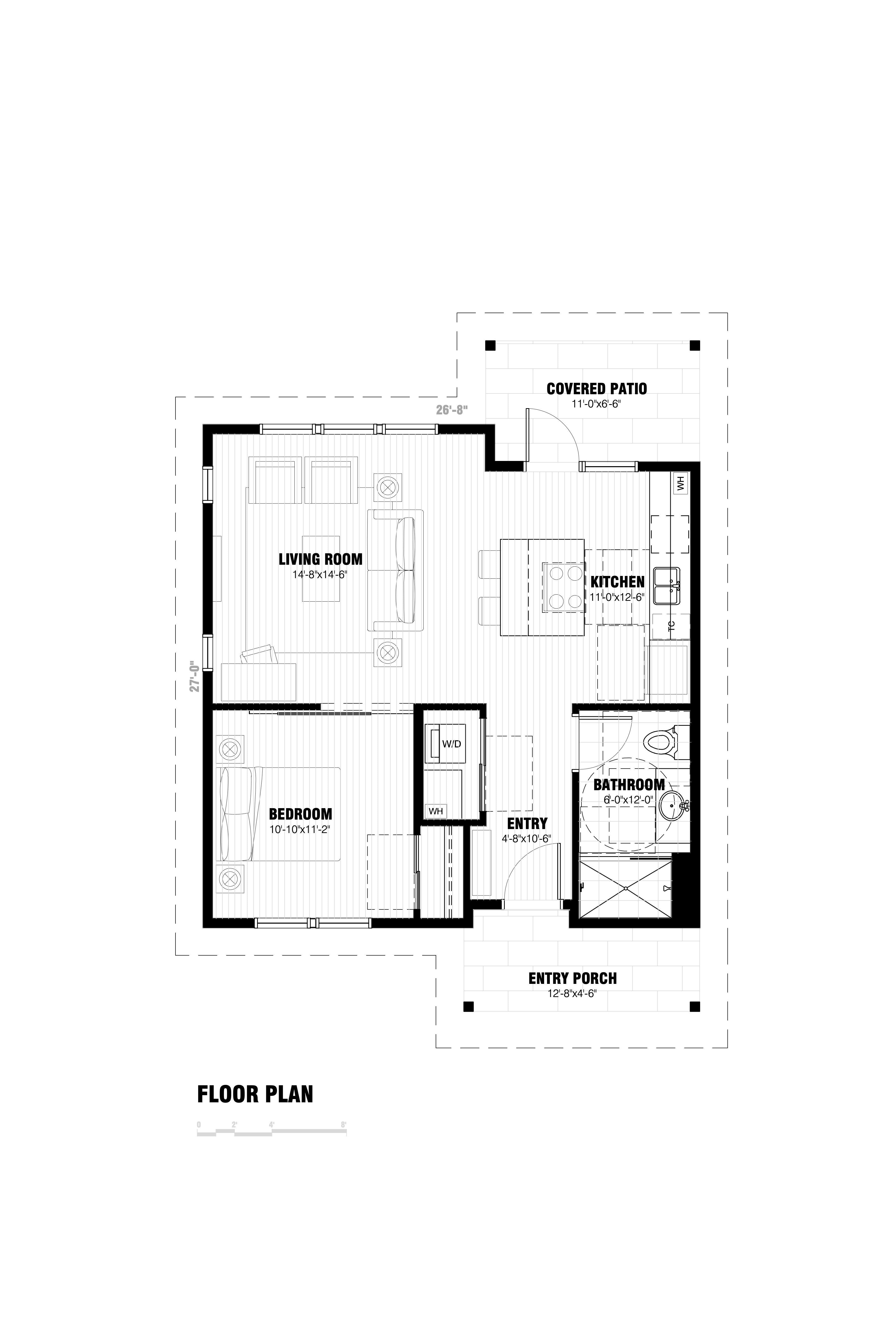

Architectural drawings — Floor plans, elevations, building sections, and roof plan.
-
Structural drawings — Foundation plan, framing plans, and structural details.
-
Electrical layout — Schematic electrical plan for permitting reference.
-
Site plan template — A blank site plan diagram sized for the intended lot width — your surveyor or civil engineer fills in your specific lot data.
-
Energy compliance notes — General energy code compliance notes for most U.S. jurisdictions.
-
Format — Print-quality PDF, delivered immediately at checkout. Files are 24" × 36" sheet size, standard for print shops and permit submissions.
Plan Specifications Table
| Specification | Value |
| Plan Name | The Cottage ADU Plan — V1 |
| Bedrooms | 1 |
| Bathrooms | 1 full |
| Total Living Area | 639 sq ft |
| Lot Width Required | [House Width + 10'] ft minimum |
| Lot Depth Required | [X] ft minimum |
| Stories | 1 |
| Garage | None |
| Foundation Type | Slab |
| Architectural Style | Traditional Cottage |
| ADU Option | Included (Stand-alone ADU) |
| Sheet Count | 8 sheets |
| File Format | PDF (print-ready, 24" × 36") |
| License | Single-build license — one permitted structure |
