The Craftsman Carriage Garage
The Craftsman Carriage Garage

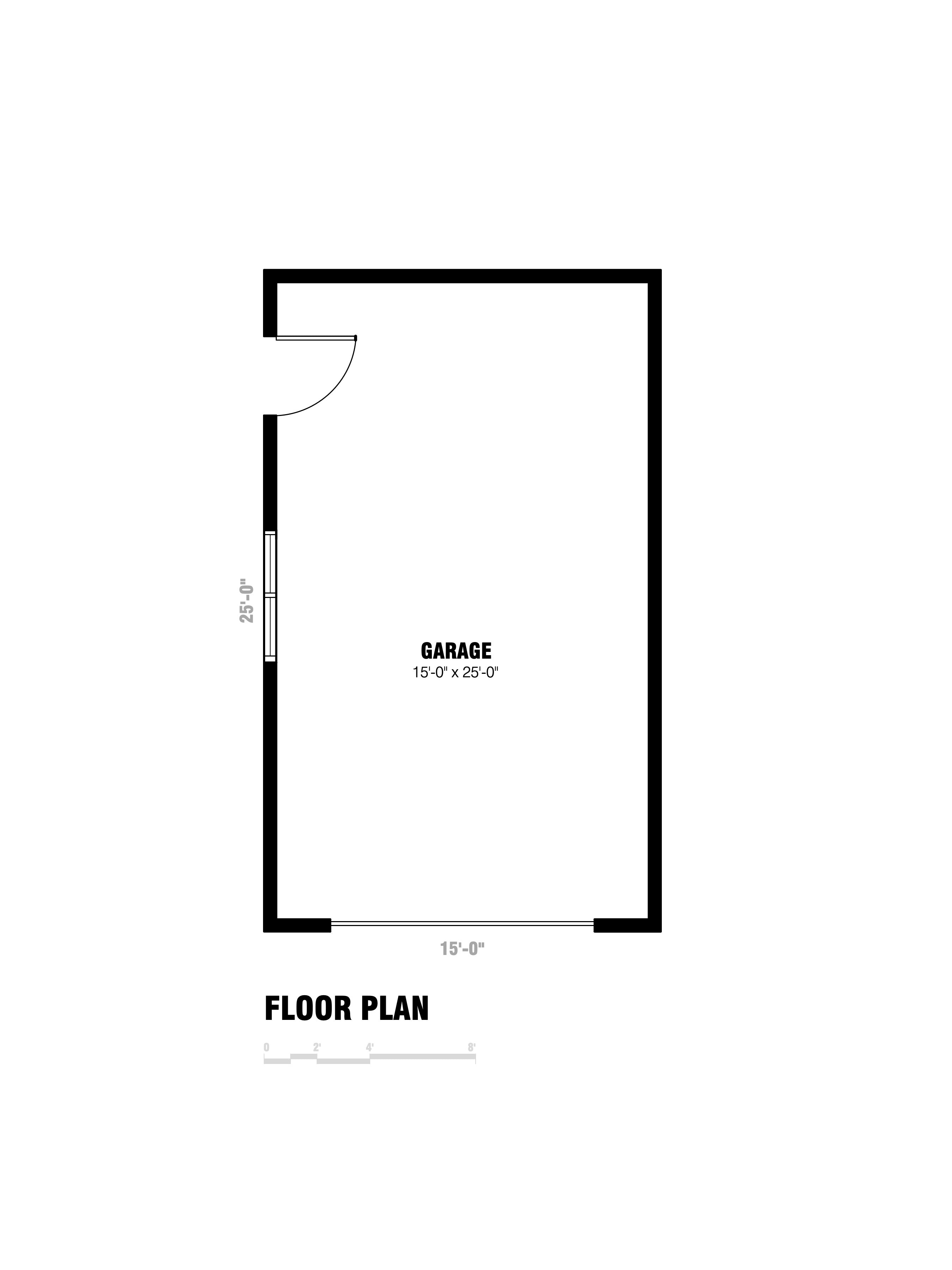

The Craftsman Carriage Garage is a detached garage with a simple, classic look and a very practical layout. At 15' x 25', it provides approximately 375 square feet of enclosed space for parking, storage, tools, bikes, outdoor equipment, or a small workshop.

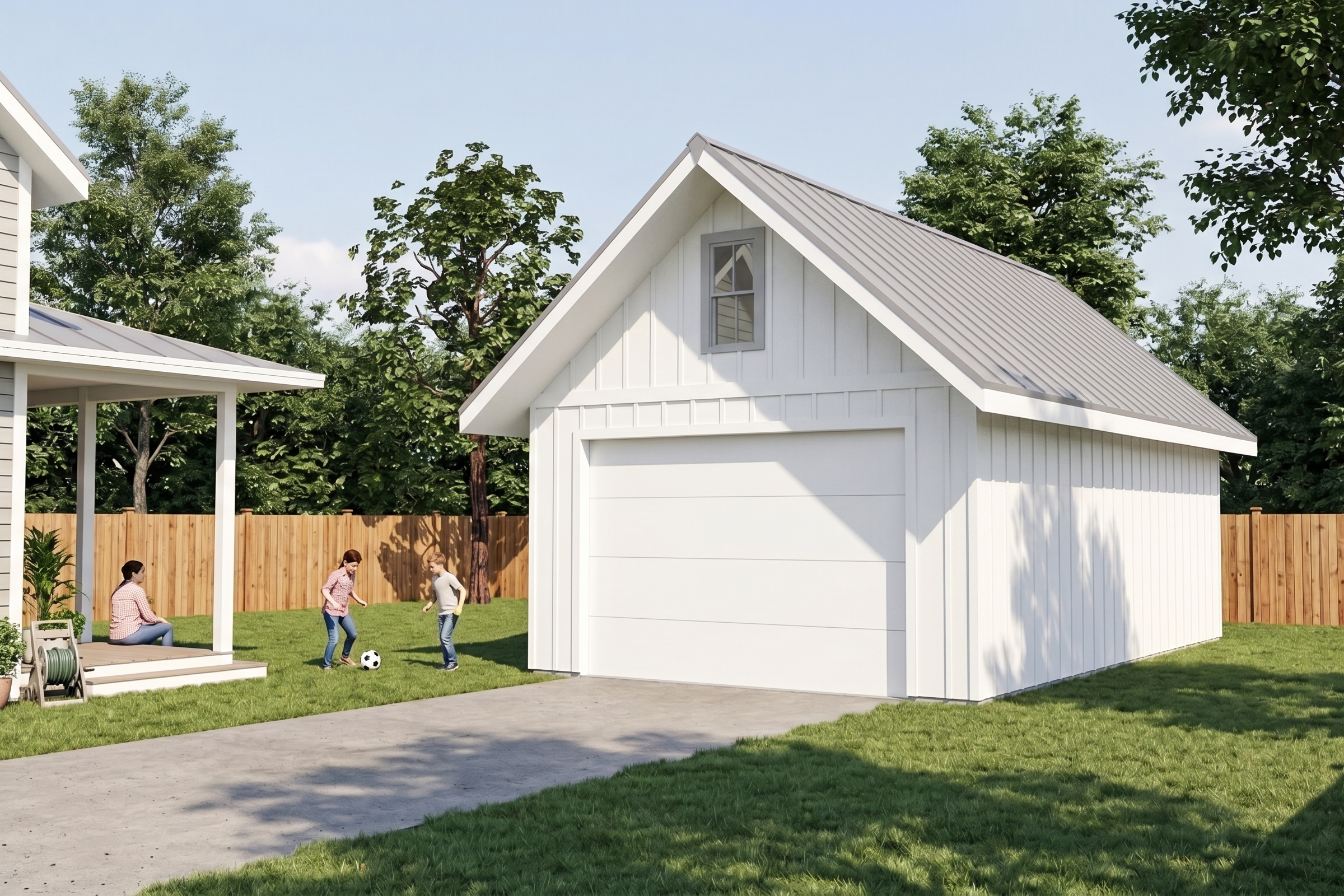

The steep gable roof gives the garage a traditional carriage-house feel while creating useful overhead volume for attic storage. A large overhead door provides easy vehicle access, while the side entry door makes day-to-day use more convenient. Windows bring in natural light, making the interior feel less like a basic storage shed and more like a usable extension of the home.

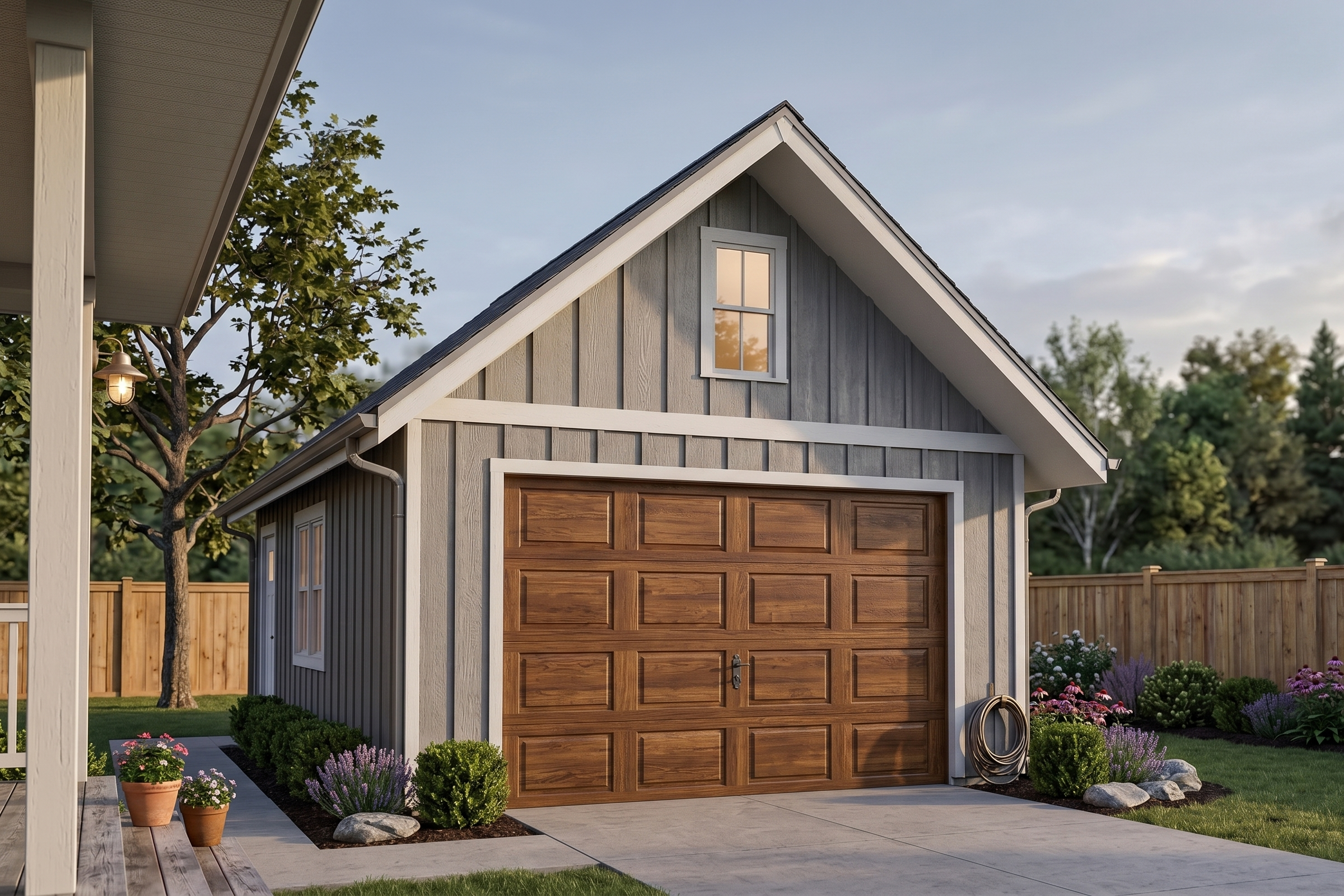

The exterior is designed to complement a wide range of house styles, with board-and-batten siding, gable detailing, and architectural shingles that give the building a clean, residential character. It can work well next to a new home, behind an existing house, or as a standalone accessory structure on a larger property.
Built on a thickened slab foundation with wood framing and pre-manufactured roof trusses, the Craftsman Carriage Garage is intended to be straightforward to build, durable, and flexible in use. Whether used for a vehicle, storage, hobbies, or a small workshop, it adds useful space without overwhelming the site.
What's Included in This Plan Set
-
Architectural drawings — Floor plans, elevations, building sections, and roof plan.
-
Structural drawings — Foundation plan, framing plans, and structural details.
-
Electrical layout — Schematic electrical plan for permitting reference.
-
Site plan template — A blank site plan diagram sized for the intended lot width — your surveyor or civil engineer fills in your specific lot data.
-
Energy compliance notes — General energy code compliance notes for most U.S. jurisdictions.
-
Format — Print-quality PDF, delivered immediately at checkout. Files are 24" × 36" sheet size, standard for print shops and permit submissions.
Plan Specifications Table
| Specification | Value |
| Plan Name | The Craftsman Carriage Garage |
| Bedrooms | 0 |
| Bathrooms | 0 |
| Area | 375 sq ft |
| Width | 15 ft |
| Depth | 25 ft |
| Stories | 1 |
| Garage | 1-Car |
| Foundation Type | Crawl Space |
| Architectural Style | Modern Farm House |
| ADU Option | Available Add-On |
| Sheet Count | 6 sheets |
| File Format | PDF (print-ready, 24" × 36") |
| License | Single-build license — one permitted structure |
Drawings are delivered digitally via email within minutes of your purchase.
All Infill Plans products are digital downloads. Because our plan sets, CAD files, and related documents contain intellectual property that cannot be physically returned once delivered, all sales are final.
Once a digital file has been purchased, accessed, downloaded, or delivered, we are unable to offer returns, exchanges, or refunds. By completing your purchase, you acknowledge that you are receiving digital intellectual property and that the product cannot be “returned” in the same way as a physical item.
We encourage all customers to carefully review the plan description, square footage, included drawings, licensing terms, and product options before purchasing. If you have questions about whether a plan is appropriate for your project, property, or jurisdiction, please contact us before placing your order.
If there is a technical issue with your download, such as a missing file, corrupted file, or incorrect file delivery, we will make reasonable efforts to correct the issue and provide the proper digital files.
Purchase of a plan does not guarantee permit approval. All plans must be reviewed by the local authority having jurisdiction and may require site-specific modifications, engineering, energy code compliance documentation, or review by a licensed professional in the project jurisdiction.
