The Meridian Plan is a 3-bedroom + Den, 2.5-bathroom, 2,310 square foot home designed for street facing lots built into hillsides. With a elegant modern farmhouse aesthetic and a layout that maximizes hillside lots, this plan solves the real constraints of urban infill development.
The main level opens to an open-concept kitchen, dining, and living area oriented toward the rear yard, maintain natural light and visual depth on a compact footprint. Elevate ceiling in the entry open into the main living zone create an impressive architectural first impression. The primary suite occupies the top floor with an oversized walk-in closet and spa-grade bathroom, separated from the secondary bedrooms for privacy and quiet.
This plan is optimized for mid sized or sloped urban lots. The house can be provided without the lower level garage or a bonus room below teh great room for flat sites.
What's Included in This Plan Set
-

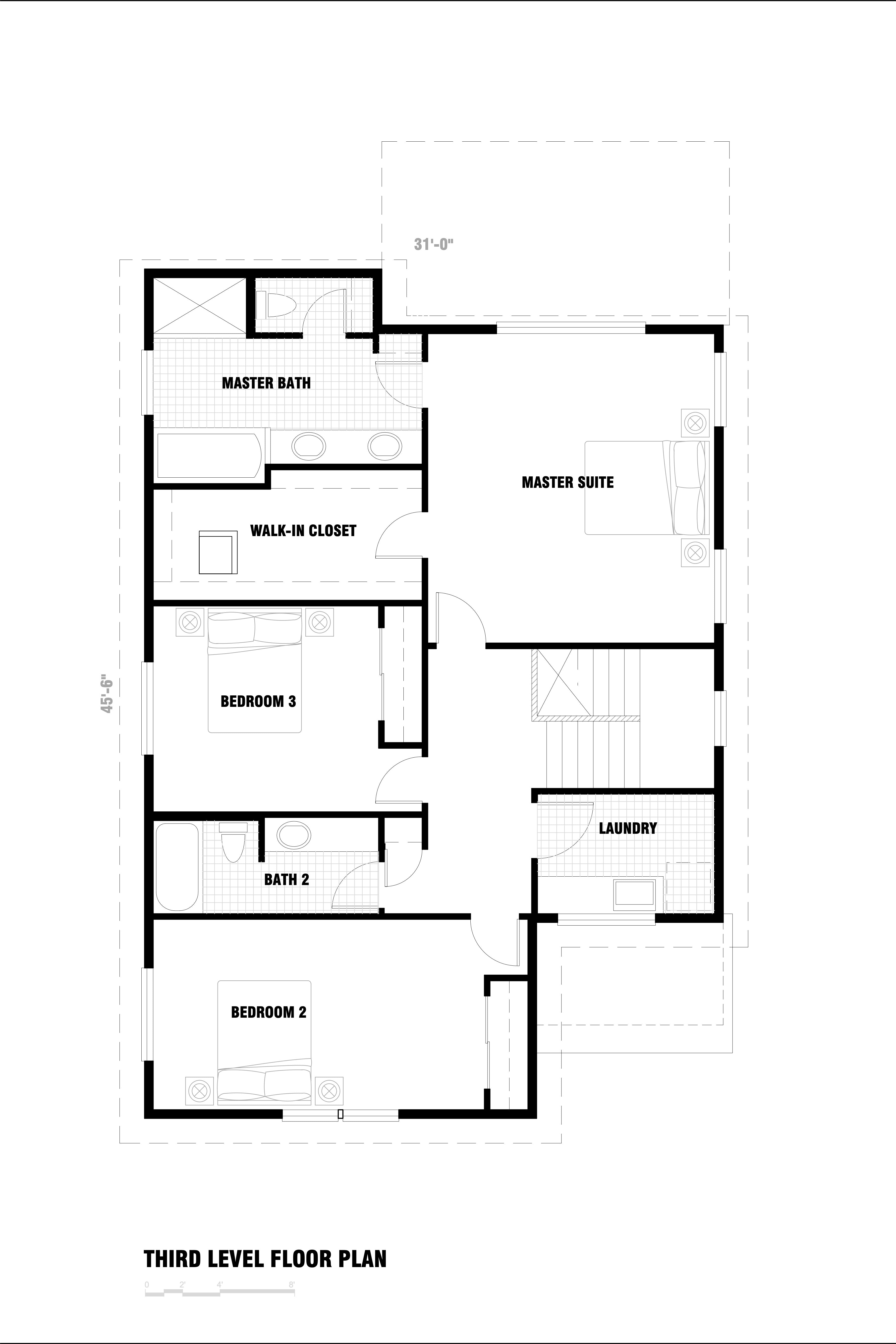

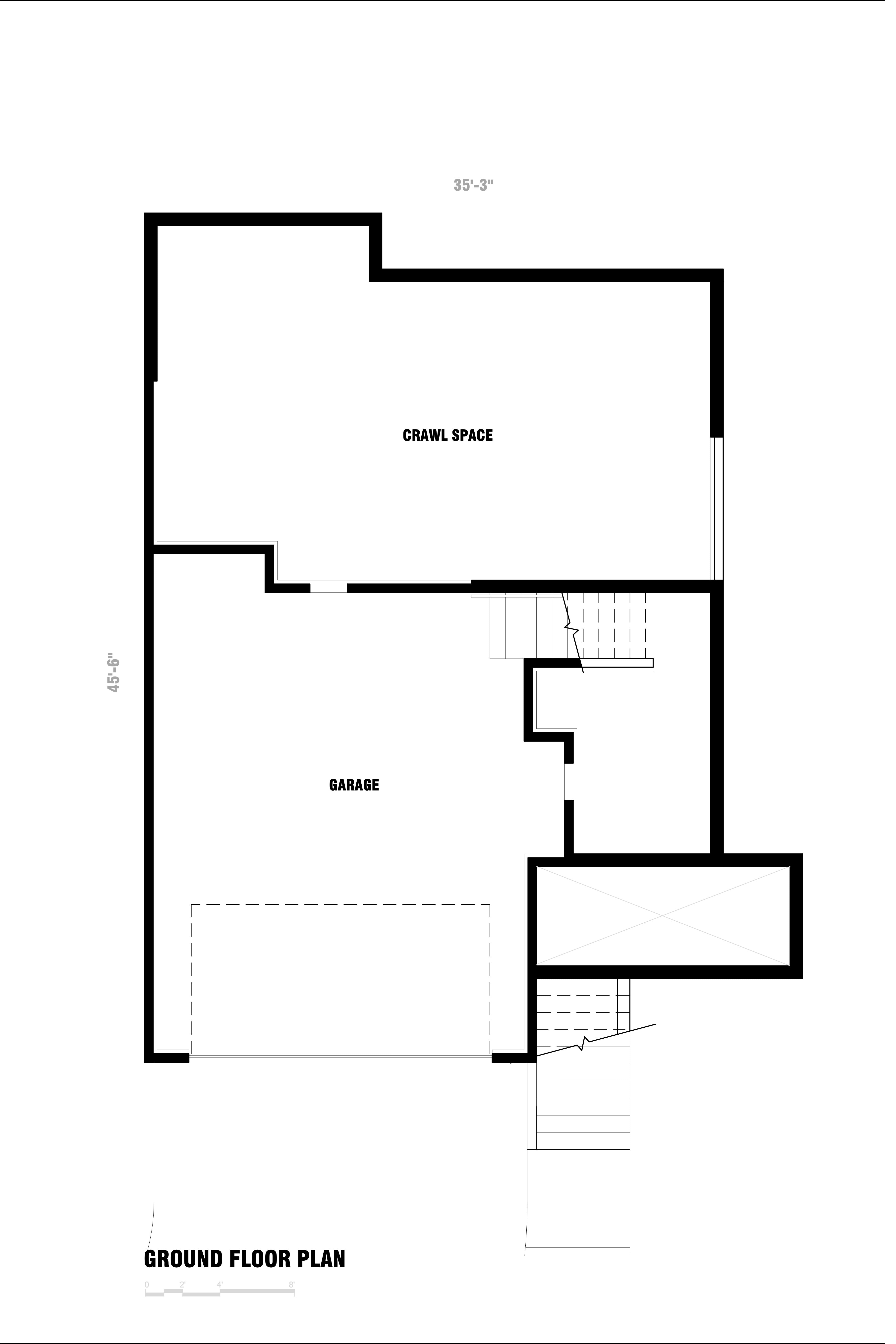

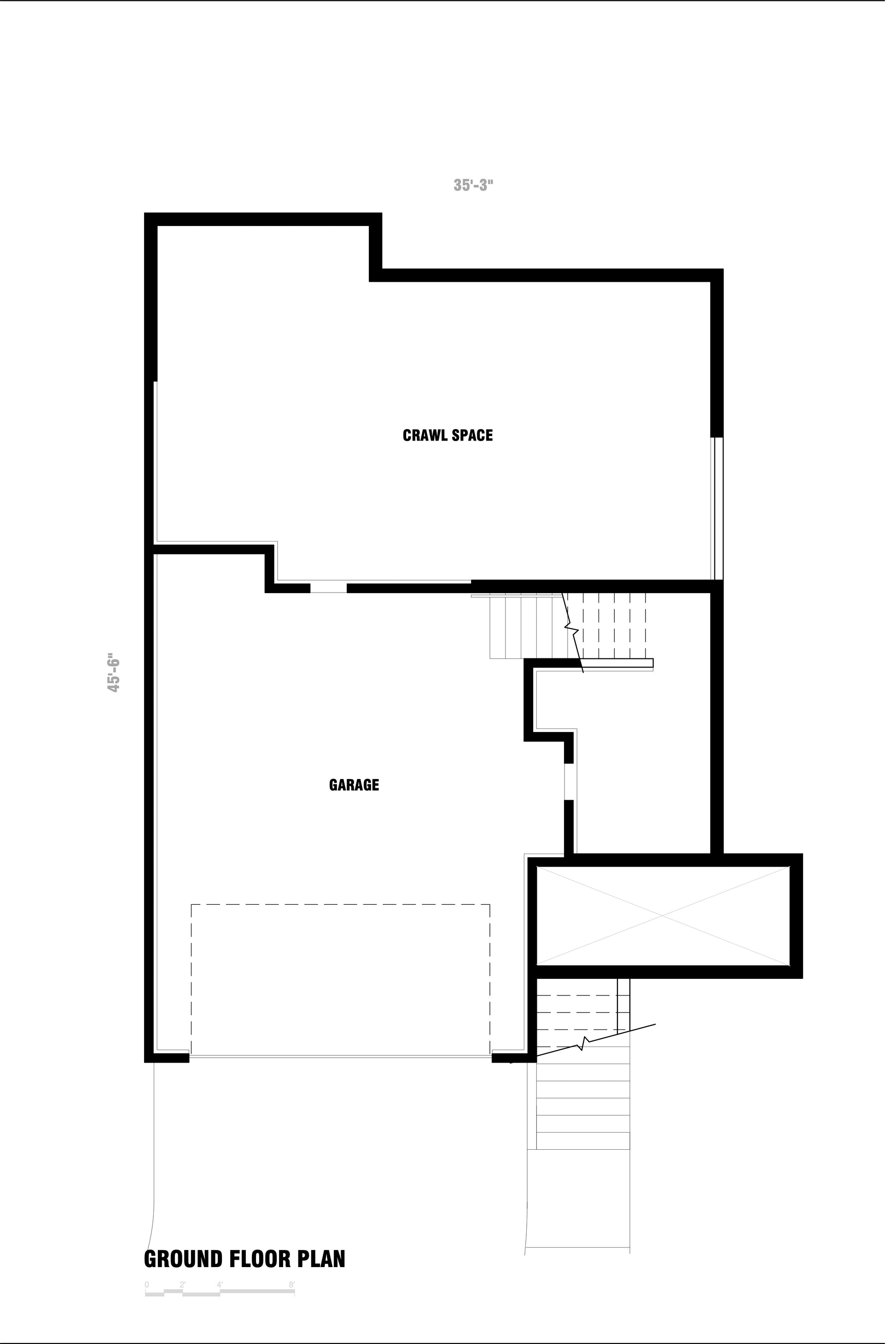

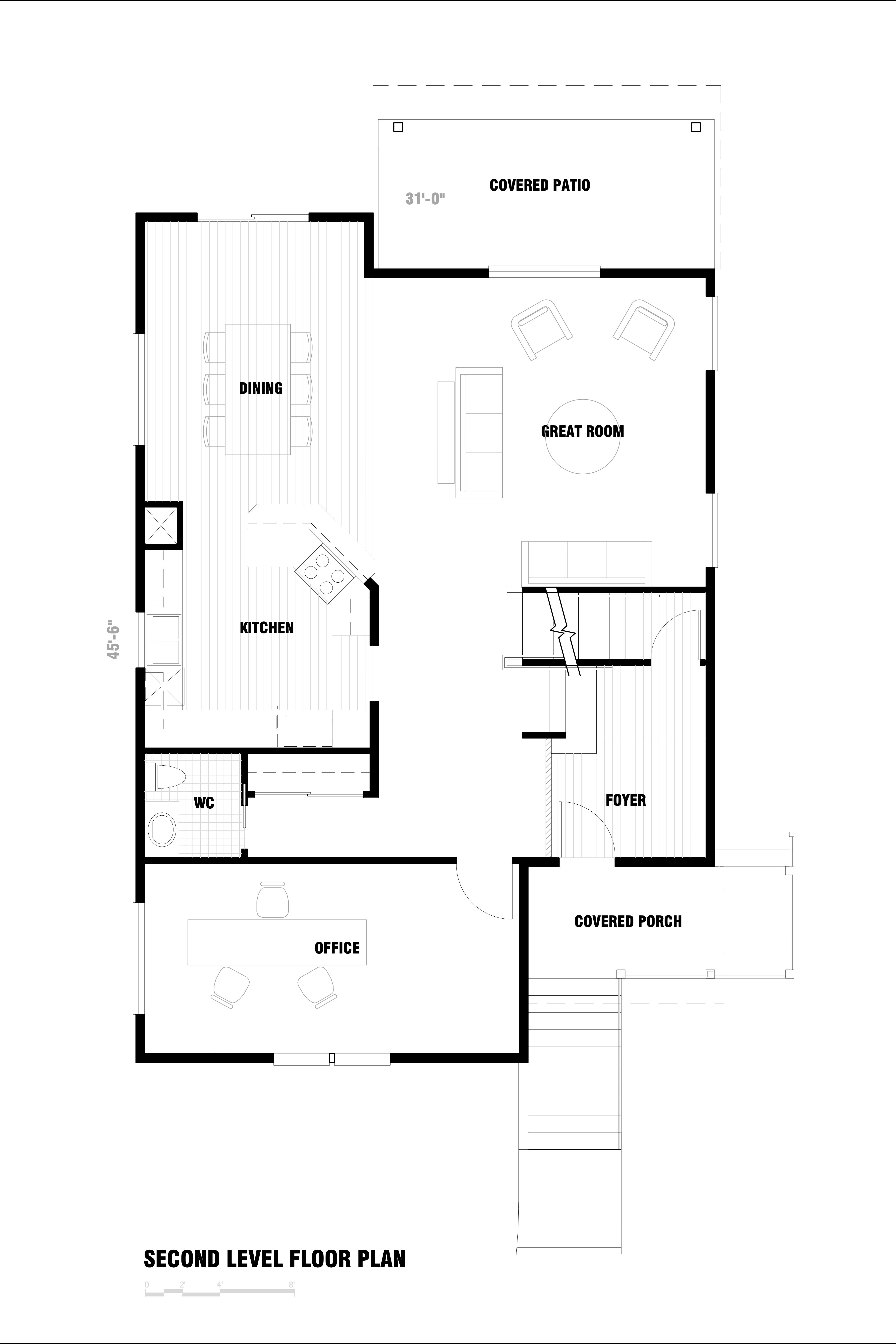

Architectural drawings — Floor plans, elevations, building sections, and roof plan.
-
Structural drawings — Foundation plan, framing plans, and structural details.
-
Electrical layout — Schematic electrical plan for permitting reference.
-
Site plan template — A blank site plan diagram sized for the intended lot width — your surveyor or civil engineer fills in your specific lot data.
-
Energy compliance notes — General energy code compliance notes for most U.S. jurisdictions.
-
Format — Print-quality PDF, delivered immediately at checkout. Files are 24" × 36" sheet size, standard for print shops and permit submissions.
Plan Specifications Table
| Specification | Value |
| Plan Name | The Meridian Plan |
| Bedrooms | 3 |
| Bathrooms | 2 full + 1 half |
| Total Living Area | 2,310 sq ft |
| House Width | 32 ft |
| House Depth | 46 ft |
| Stories | 3 |
| Garage | 2-Car |
| Foundation Type | Slab / Crawl Space |
| Architectural Style | Modern Farm House |
| ADU Option | Available Add-On |
| Sheet Count | 14 sheets |
| File Format | PDF (print-ready, 24" × 36") |
| License | Single-build license — one permitted structure |
Drawings are delivered digitally via email within minutes of your purchase.
All Infill Plans products are digital downloads. Because our plan sets, CAD files, and related documents contain intellectual property that cannot be physically returned once delivered, all sales are final.
Once a digital file has been purchased, accessed, downloaded, or delivered, we are unable to offer returns, exchanges, or refunds. By completing your purchase, you acknowledge that you are receiving digital intellectual property and that the product cannot be “returned” in the same way as a physical item.
We encourage all customers to carefully review the plan description, square footage, included drawings, licensing terms, and product options before purchasing. If you have questions about whether a plan is appropriate for your project, property, or jurisdiction, please contact us before placing your order.
If there is a technical issue with your download, such as a missing file, corrupted file, or incorrect file delivery, we will make reasonable efforts to correct the issue and provide the proper digital files.
Purchase of a plan does not guarantee permit approval. All plans must be reviewed by the local authority having jurisdiction and may require site-specific modifications, engineering, energy code compliance documentation, or review by a licensed professional in the project jurisdiction.
